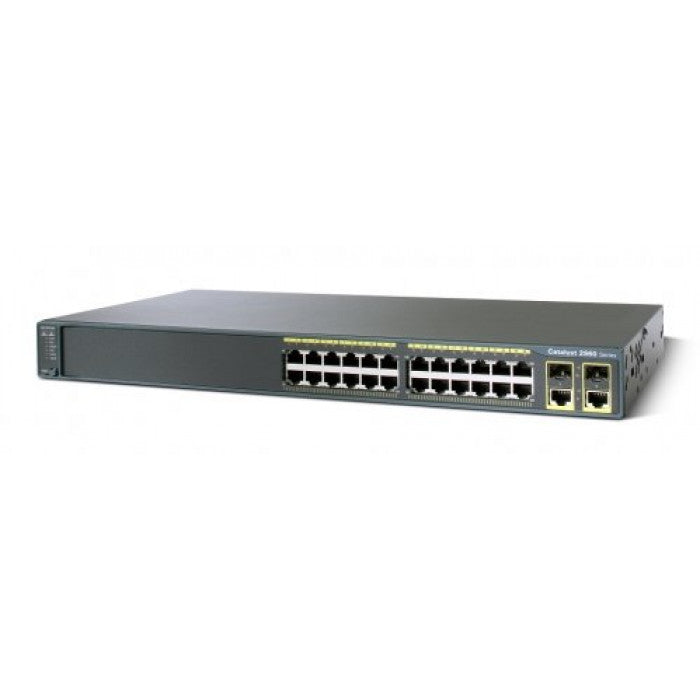

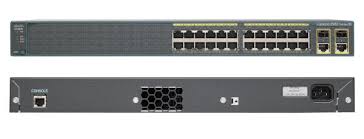

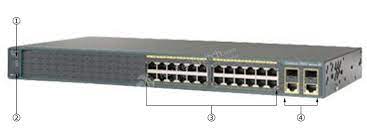

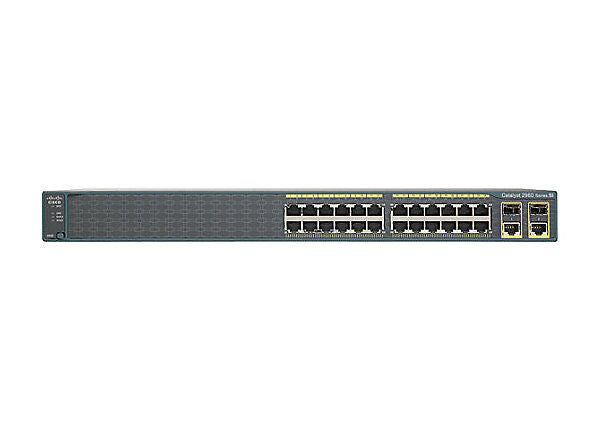

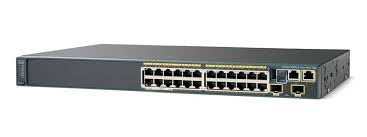

Cisco Catalyst 2960-24-S - switch - 24 ports - Managed - rack-mountable (WS-C2960-24-S)
- Dhs. 1,490.50 Dhs. 1,760.00
- Brand: JS Bazar
- Availability: 5 In Stock
- SKU:
Cisco Catalyst 2960-24-S - switch - 24 ports - Managed - rack-mountable (WS-C2960-24-S) - Used About: Device Type Switch - 24 ports - Managed Enclosure Type Rack-mountable 1U Subtype Fast...
Tags: Cisco , cisco 2960 series , Switches
Cisco Catalyst 2960-24-S - switch - 24 ports - Managed - rack-mountable (WS-C2960-24-S) - Used
About:
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 |
| Performance | Switching capacity: 16 Gbps Forwarding performance (64-byte packet size): 3.6 Mpps |
| MAC Address Table Size | 8K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2 |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| RAM | 64 MB |
| Flash Memory | 32 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| DIMENSIONS & WEIGHT | |
|---|---|
| Width | 44.5 cm |
| Depth | 23.6 cm |
| Height | 4.4 cm |
| Weight | 3.65 kg |
| MISCELLANEOUS | |
| Rack Mounting Kit | Optional |
| MTBF | 429,847 hours |
| Compliant Standards | TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A |
| POWER | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 22 Watt |
| Features | Redundant Power System (RPS) connector |
| ENVIRONMENTAL PARAMETERS | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| EXPANSION / CONNECTIVITY | |
| Interfaces | 24 x 100Base-TX - RJ-45 |
