Cisco SFP-H10GB-CU1M 10G SFP+ Passive Direct Attach Copper Cable, 1m (Refurbished)

Cisco SFP-H10GB-CU1M 10G SFP+ Passive Direct Attach Copper Cable, 1 Metre

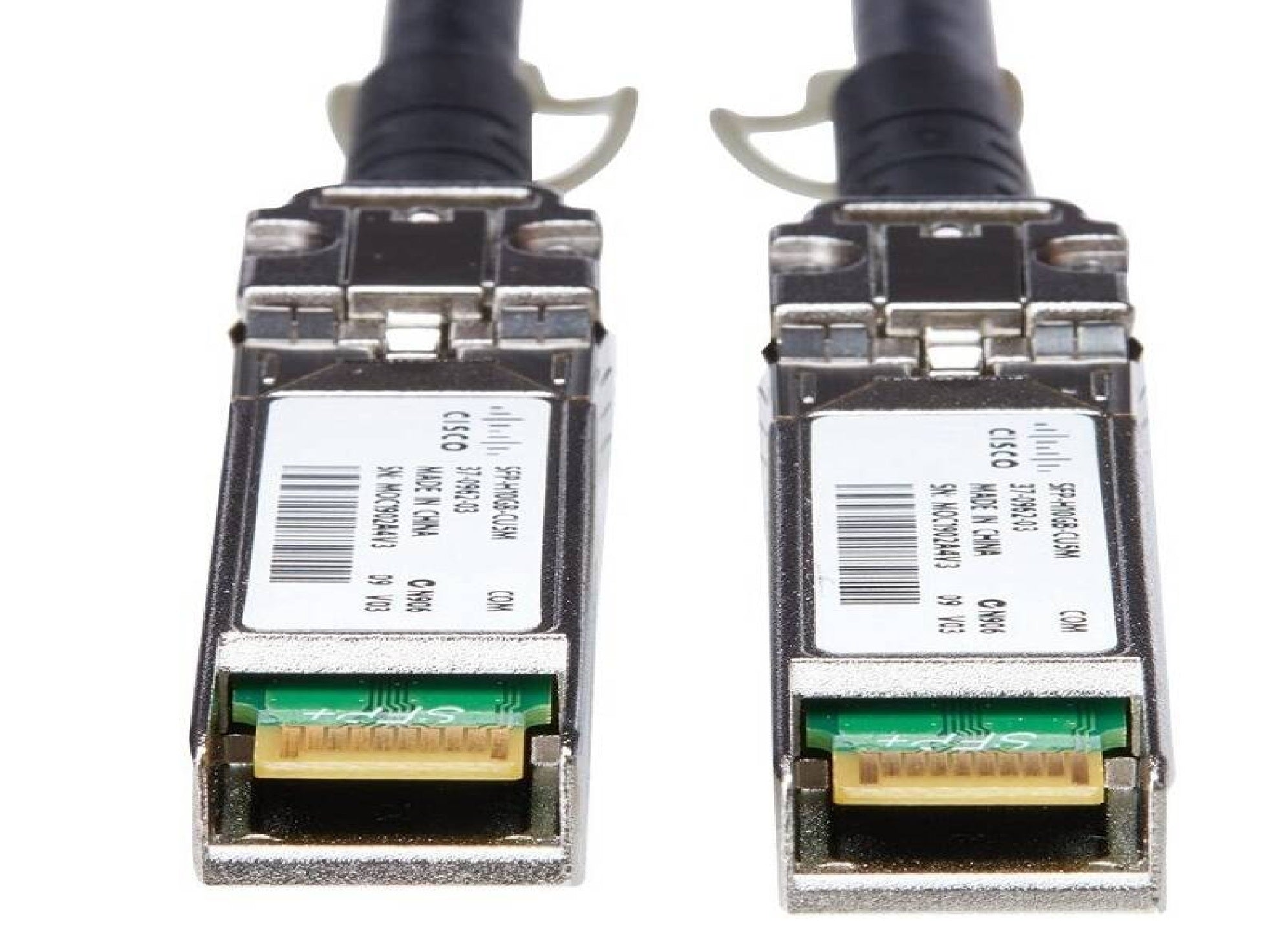

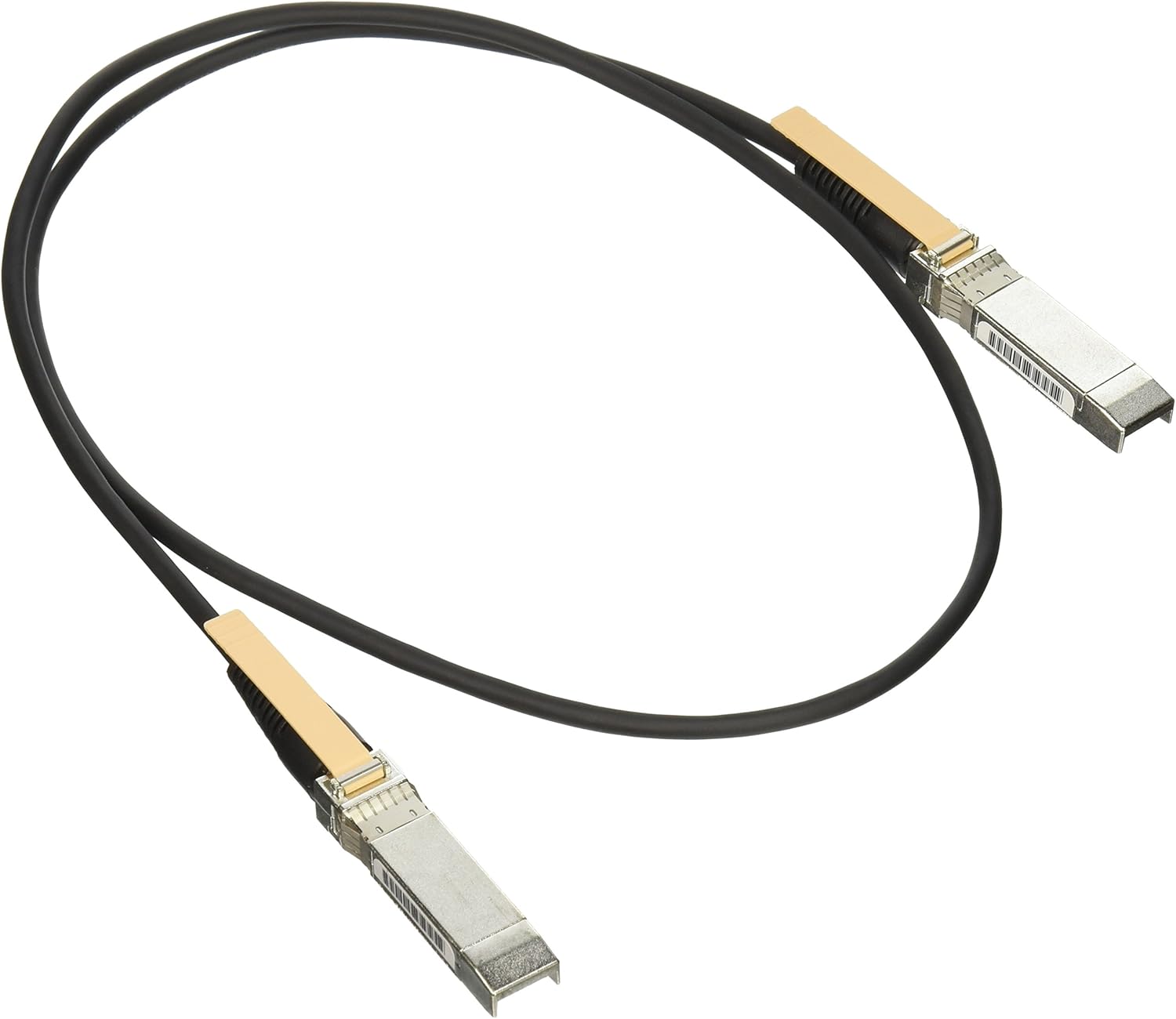

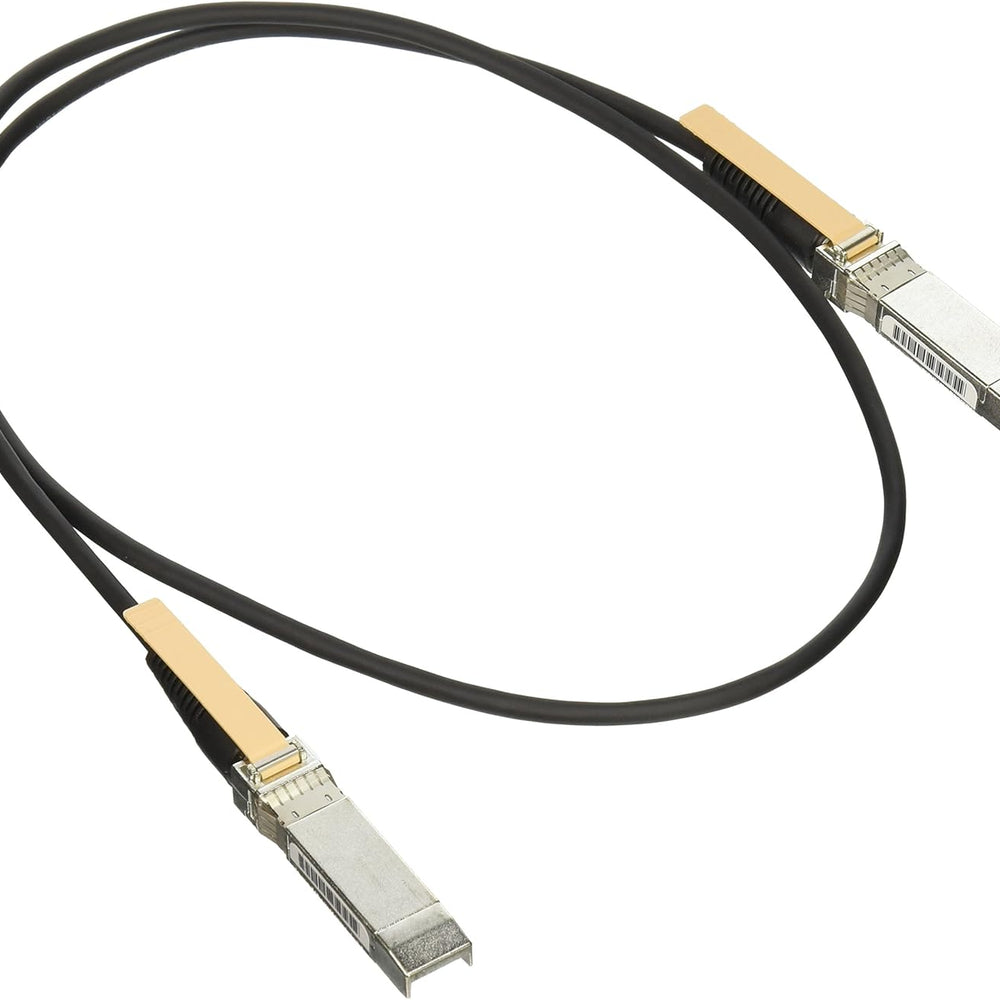

The Cisco SFP-H10GB-CU1M is a 1-metre passive twinax Direct Attach Copper (DAC) cable with SFP+ connectors integrated at both ends. It provides a short-distance 10 Gigabit connection between compatible switches, servers and other network devices without separate optical transceivers or fibre patch leads.

Technical specifications

• Part number: SFP-H10GB-CU1M
• Interface: SFP+ to SFP+ direct attach
• Data rate: 10 Gbps
• Cable type: Passive twinax copper assembly
• Length: 1 m (3.3 ft)
• Cable gauge: 30 AWG assembly (Cisco specification)
• Use: Short-reach switch-to-switch or server-to-switch links
• Condition: Used

Compatibility

For supported SFP+ ports on compatible Cisco platforms. Cisco notes that only Version -02 and later of this DAC cable is qualified on all Cisco platforms, so check the cable label/revision and host-device compatibility before purchase. This is a copper DAC cable, not an optical SFP transceiver.

Search terms: Cisco SFP-H10GB-CU1M, 10G SFP+ DAC, 1m twinax cable, passive direct attach copper, Cisco 10Gb switch cable.
