Cisco AIR-ANT2524V4C-R= Dual-Band Ceiling-Mount Omnidirectional Wi-Fi Antenna, 4-Port MIMO, 2dBi/4dBi (Refurbished)

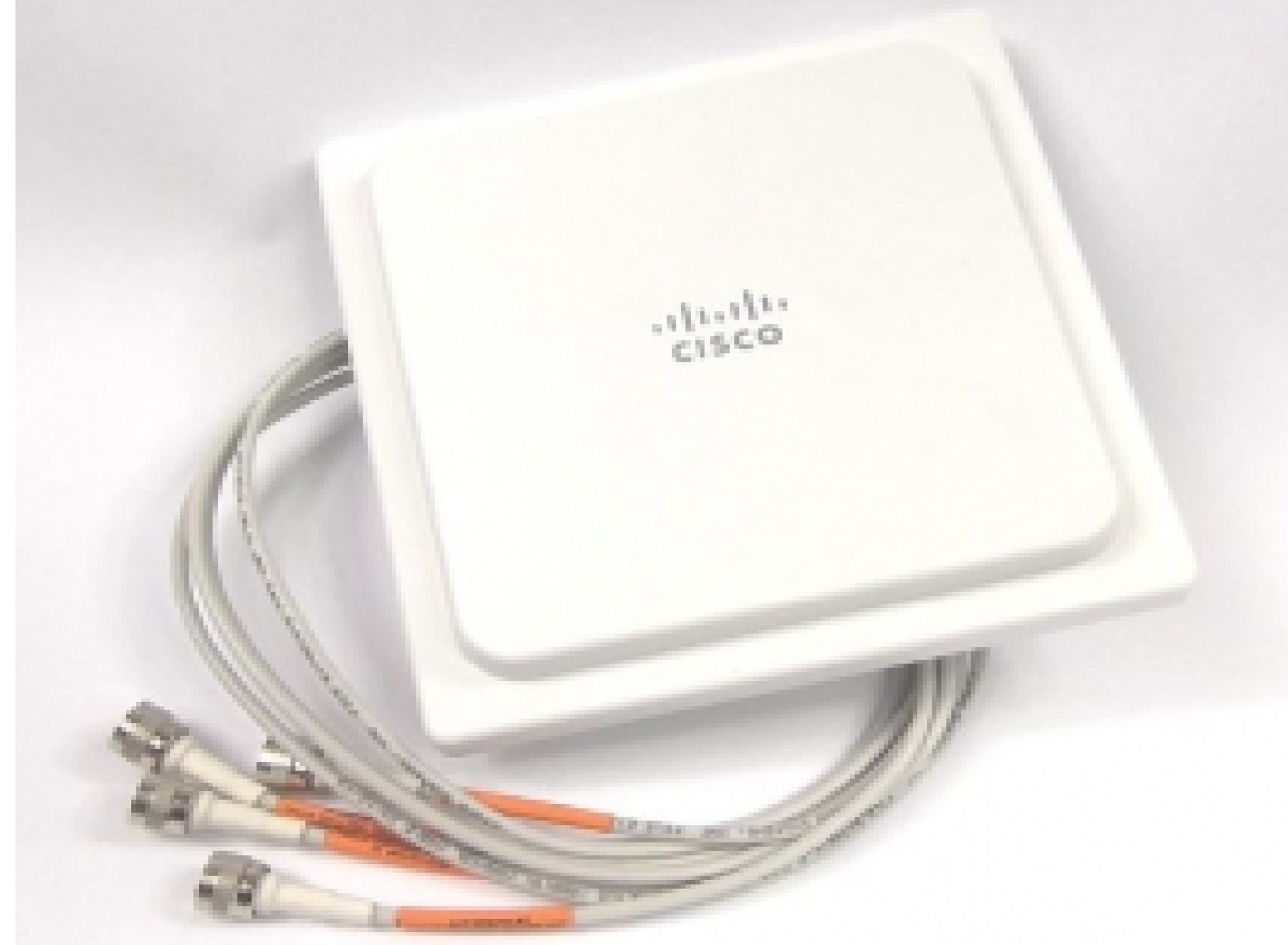

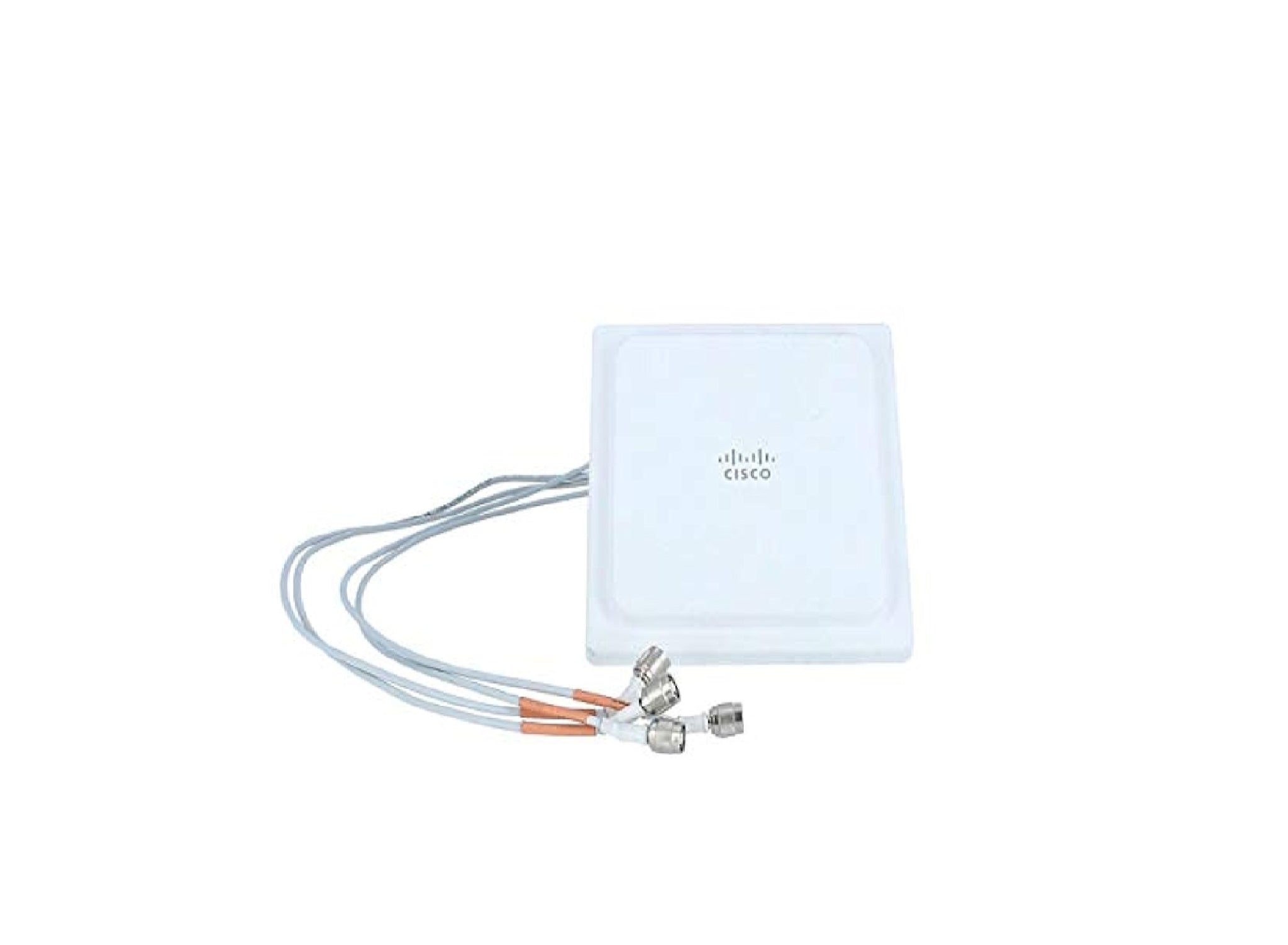

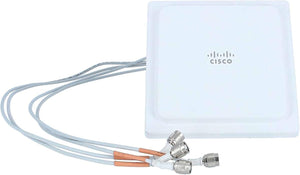

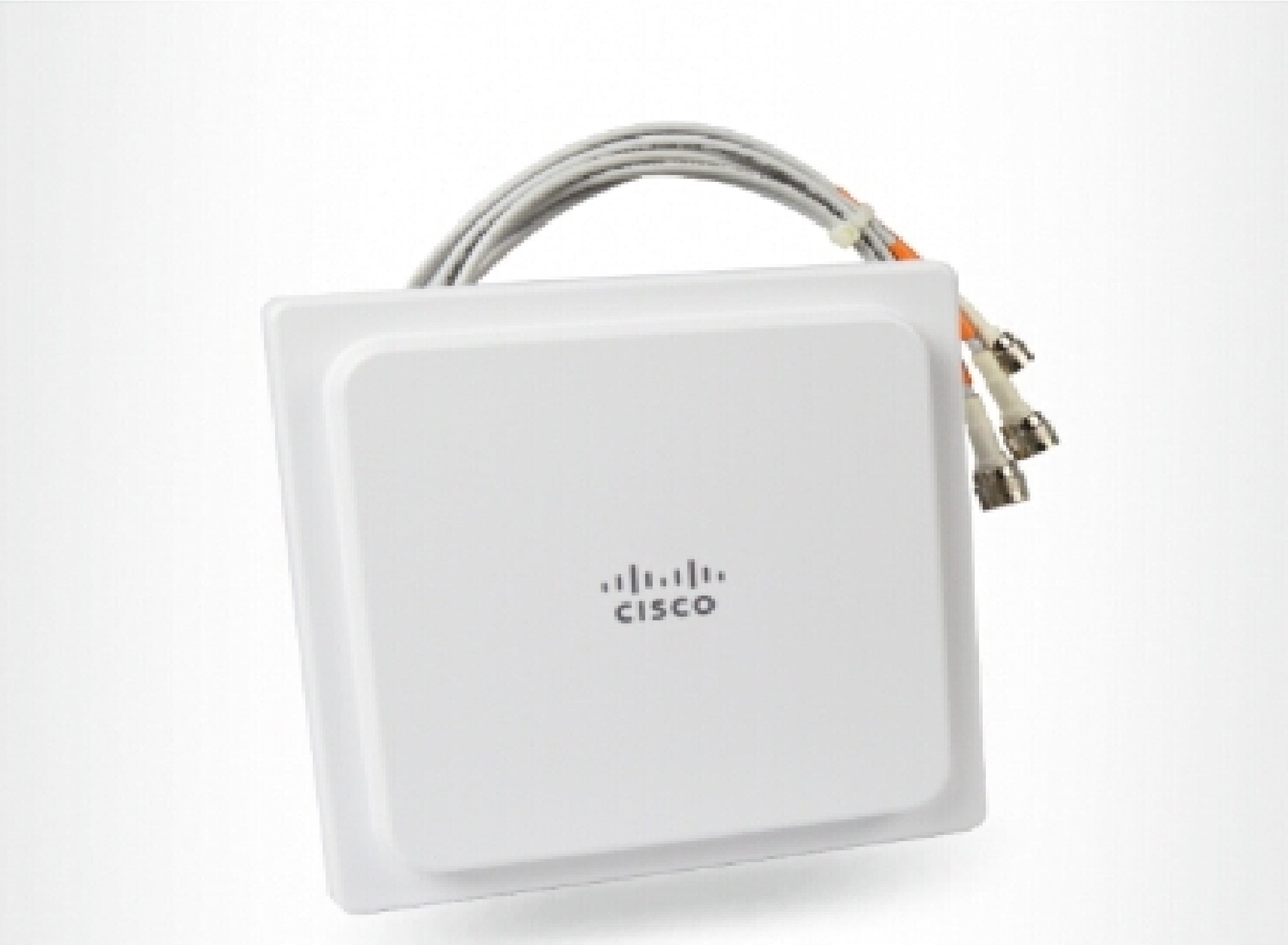

Cisco AIR-ANT2524V4C-R= Dual-Band Ceiling-Mount Omnidirectional Antenna

The Cisco AIR-ANT2524V4C-R= is a four-element, dual-band ceiling-mount omnidirectional antenna for compatible Cisco access points with four external antenna ports. It provides 2 dBi gain in the 2.4 GHz band and 4 dBi gain in the 5 GHz band, with four RP-TNC connections and plenum-rated pigtail cables.

Technical specifications

• Part number: AIR-ANT2524V4C-R=
• Antenna type: Dual-band omnidirectional ceiling mount, four elements
• Frequency range: 2.400–2.484 GHz and 5.150–5.850 GHz
• Gain: 2 dBi at 2.4 GHz; 4 dBi at 5 GHz
• Connectors: 4 x RP-TNC male
• Cables: Four 36-inch (91 cm) plenum-rated pigtails
• Polarisation: Linear
• Coverage: Omnidirectional azimuth pattern
• Mounting: Ceiling
• Condition: Used

Compatible access points

Designed for Cisco APs with four compatible dual-band external antenna ports. Cisco lists the antenna family for selected Aironet 1830, 1850, 2800 and 3800 Series and Catalyst 9115AX, 9120AX and 9130AX access points. Confirm the exact AP model, connector type and antenna configuration before purchase.
